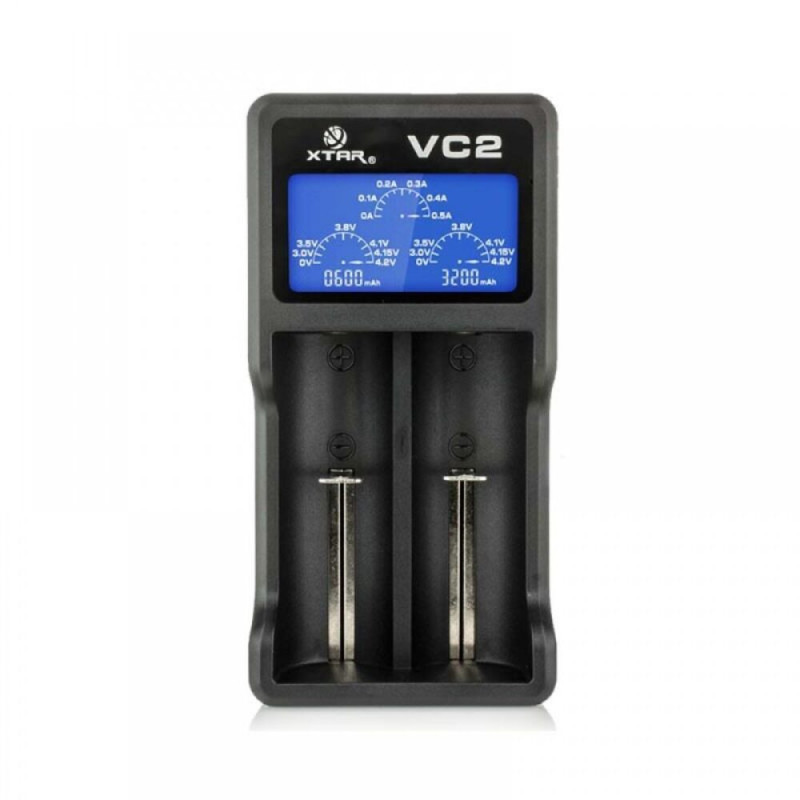

XTAR VC2 Battery Charger

Key Features:

Two independent charging channels - can charge batteries of different sizes or capacities at the same time
Processor-controlled three-stage charging process (TC/CC/CV)
Detailed LCD display showing detailed voltage and capacity of the batteries being charged (5% error)
Supports up to 0.5A charging current per battery
Powered by USB - can be connected to any USB adapter or computer output. Recommended power supply - 5V 1.0A.
Fully discharged battery recovery function
*Attention. In some cases, it is impossible to recover completely discharged batteries. Avoid fully discharging lithium-ion batteries - this significantly reduces their service life and capacity. If there is no possibility to control the battery discharge level, use batteries with an installed PCB controller.
Protection against short circuit, incorrect polarity and overheating
Suitable for charging all 3.6V - 3.7V 10440 - 26650 lithium-ion batteries
*Not suitable for charging 20700/21700 batteries with PCB protection
The external power supply used reduces the temperature rise of the charger during charging, thus protecting the battery from additional heating.

Technical characteristics:

Types of rechargeable cells: Li-ion 3.6V-3.7V (both simple batteries and with PCB controller)
Sizes of rechargeable cells:
All charging channels: 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650 (not suitable for charging protected - with PCM/PCB - 20700/21700 batteries)
Power source: External USB charger (USB cable included)
Supply voltage: USB 5V; recommended - 1.0A (USB charger not included)
Charging method: TC/CC/CV for Li-ion batteries
Full charge cut-off voltage: 4.2V ± 0.05V
Dimensions: 131 x 66 x 33mm
Weight: 109g

Package contents:

VC2 charger
USB charging cable
