24/7 continuous power supply for parking mode with ACC + B+ recognition and time-lapse video recording at 1 fps. IPS control with low voltage cut-off configurable in the app (default 12V) and USB-C 5V / 3A output specifically for the DDPAI M5S recorder. 5 layers of protection and high-power cables for safe installation in the fuselage are included.

Stable power supply and advanced protection
The M5S video recorder provides 5V / 3A via USB-C, protecting against voltage drops during recording and data transmission. IPS electronics include low voltage, overcurrent, overload, short circuit and reverse polarity protection to protect the car battery and equipment.

Clean and reliable fuselage mounting
Three-point connection (ACC, VCC/B+, GND) with fuse plugs available in three formats (mini/small/medium). The wiring uses 22 AWG copper and fire-resistant ABS to withstand the load and temperature, and is hidden behind the dashboard and frees up the cigarette lighter socket.

24/7 parking with app control
Allows you to set the voltage threshold (for safe shutdown), parking duration and mode (time-lapse, normal or idle) in the app. When the engine is turned off, 1fps time-lapse video recording is automatically activated to extend the monitoring time and save space.

Compatibility and limitations
USB-C type version for M5S (12V). Not for 24V vehicles. Professional assembly is recommended to select the correct fuse and ensure a solid ground; poor connection can cause IPS shutdowns or false positives.

Our Expert Opinion
Compared to the M5S powered by a cigarette lighter charger, this kit provides smart start/stop, 24/7 parking and battery protection with a discreet installation. Compared to the OBD wiring kit (more plug & play and suitable for electric vehicles), the IPS offers 5V/3A output and wiring to the fuse box, which is preferable for a stable solution with better integration; On the other hand, it requires integration into the fuse box and does not support 24V. It is a very well-balanced device if you are looking for reliability, electrical safety and a clean installation that allows you to use the DDPAI M5S in parking mode, independent of the accessory socket.

Technical Specifications

General Information

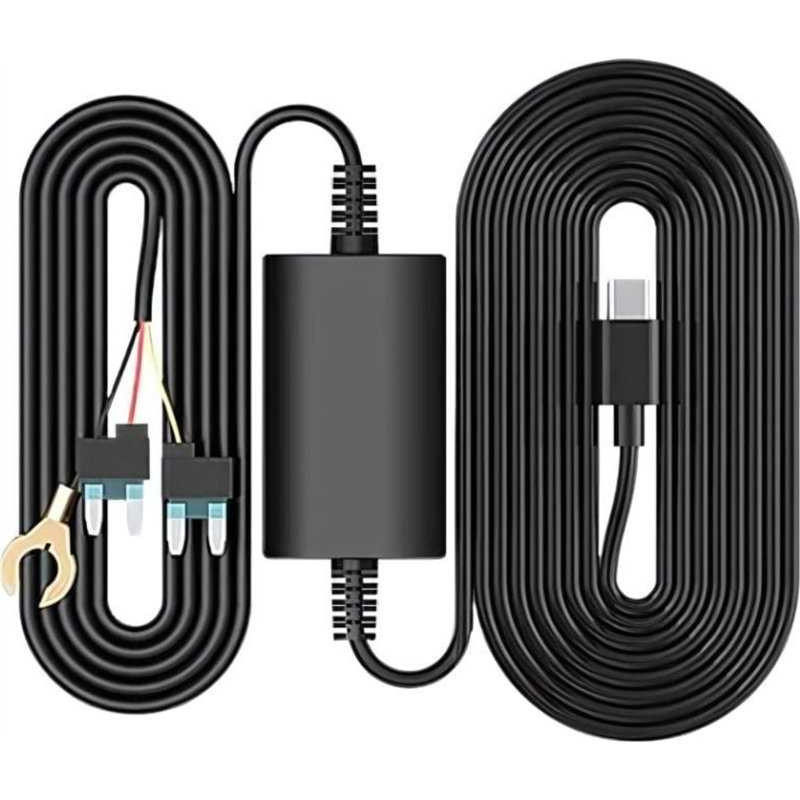

Model: DDPAI IPS Smart Wiring Harness (DC002)

Product Type: Wiring Harness with IPS Control for 24/7 Parking Monitoring

Compatible with: M5S - Z60/Z60 Pro/MINI2X/Z50 Pro/N2 - N1/N3/N5/E3/Z40/Z50 (USB-C Type).

Connectors

Vehicle Interface: Fuse Box (Three-Wire): ACC (Red), VCC/Constant (Yellow) and GND (Black).

Camera Connector: USB-C (Type C)

Fuse Adapters

Includes mini, small and medium fuse plugs

Power Supply

Input: DC 12V (≤ 2A), ACC + DC lines

Output: DC 5V ⎓ 3A (USB-C)

Power Management IPS with overvoltage protection (default limit 12V, configurable in the app), switching to time-lapse video recording when power is off (1 frame per second)

5 protection levels: overload, undervoltage, short circuit, overcurrent and reverse connection

Features

Parking Mode: Constant power supply for 24/7 parking, time-lapse video recording and automatic switching according to ACC status

Installation

Method: Connection to fuse box; hidden installation; no need to cut wires

Package Contents

Includes a wire set with ACC/VCC/GND terminals, fuse adapters and user manual.
